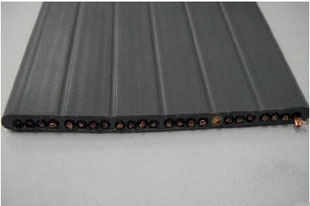

一字型起重機扁平電纜18*1.0
起重機扁電纜18*1應用范圍：
作為垂直升降機或起重機連接和控制電纜，適用于干燥或湖濕的室內或室外的各種電氣安裝。
Applications:
As connecting and control cable for lift or crane,it is also used for various kinds of electric installation in dry or wet indoor as well sa outdoor.
電纜特性：
纜芯之間加有黃麻強承載，芯線與護套間還包有一層無紡布緩沖，在超高長度情況下還有進口紡倫紗可供選擇。具有極好的抗拉性和抗撕裂強度，又保持柔軟性。產品性能佳，使用安全。
Properties:
The Butadiene-acrylonitile rubber outer sheath makes the cable resistant to ozone and UV radiation as well sa oil,acid,fat and solvents.

電纜結構
導體：多股精絞無氧銅絲，符合VDE0295 CLASS 5標準
絕緣：特殊混合丁睛PVC柔軟絕緣
顏色：多彩顏色數字表示，參照JISC3306標準。
    （如需帶黃綠接地線請說明）
內襯層：特殊無紡布包裹緩沖。
加強：多股黃麻繩填充（可選）。
護套：混合90度耐候性丁晴pvc混合護套，黑色（RAL9005）。
本電纜安裝時上端固定，自由懸掛數日，充分去除內應力后，固定下端
Structure:
Conductor:superfine copper strands acc.to VDE 0295,class 5 Colour:various colour cores with number,Colour:various colour cores with number acc.to JISC3306 or with green/yellow
inner liner:non-woven fabric wrapping to release impact Outer sheath:based on with Butadiene-acryloitrile rubber as torsion protection.
uted insulated cable rope among cores functions as tensile resistance The outer sheath is flame retardant and self-extinguishing (acc.to VDE 0482,part 265-2-1 resp.EN 50265-2-1 and IEC 60332-1).Colour black.
詳細參數：
額定電壓：450/750 V
測試電壓：2500 V
使用溫度范圍
      固定安裝：-35℃ - +90℃-
      移動安裝：-20℃ - +80℃
Technical data
Rated voltage:450/750 V
Test voltage:2500 V
Temperature range:
       fixed installation:-35℃ to +90℃
       flexible application:-20℃ to +80℃
彎曲半徑：10倍電纜外徑
Minimum bending radius:10×outer diameter
