熱電偶專用高溫線，熱電偶專用高溫電纜
High Temperature Cable Special For Thermocouple

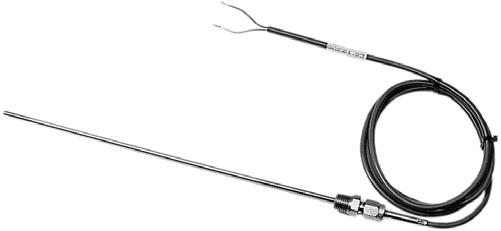

本產品為熱電偶專用的高溫連接線。產品具有優良的耐腐蝕性能，幾乎不溶于任何有機溶劑，可耐油、耐酸堿等；具有優良的電絕緣性能，不吸潮，絕緣電阻大；具有阻燃性能。
The cable is a special high temperature connecting wire of thermocouple. It has many good features such as excellent corrosion resistance, almost insoluble in any organic solvents, oil resistance, acid resistance, better electrical insulating properties, moisture resistance, big insulated resistance, flame resistance and so on.

一、產品執行標準  企標
    Executive standard: enterprise standard
二、型號
    Type

型號 type	名稱 description
AKFFPXR200	K型熱電偶專用高溫屏蔽電纜 High temperature shielding cable special for K type thermocouple
ANFFPXR200	N型熱電偶專用高溫屏蔽電纜 High temperature shielding cable special for N type thermocouple
AEFFPXR200	E型熱電偶專用高溫屏蔽電纜 High temperature shielding cable special for E type thermocouple
AJFFPXR200	J型熱電偶專用高溫屏蔽電纜 High temperature shielding cable special for J type thermocouple
ATFFPXR200	T型熱電偶專用高溫屏蔽電纜 High temperature shielding cable special for T type thermocouple

三、使用特性
    operating characteristics
1、工作溫度：電纜導體長期工作溫度為200℃。
   Long term operating temperature of cable conductor is 200℃.
2、彎曲半徑：電纜彎曲半徑不低于電纜外徑的10倍。
Bending radius of cable shall be no less than 10 times that of cable outer diameter.
3、阻燃特性：符合GB19666-2005。
   Flame resistant characteristic shall meet the requirements speculated in GB19666-2005 standard.
四、性能參數表
Performance parameter

項目 Item	單位 Unit	技術指標 Technical Indices
絕緣電阻 Insulated resistance	MΩ	25
電壓試驗 Test voltage	V	500V 1min 不擊穿 Finished cable shall endure 500v voltage test for 1 min without puncture.

五、結構尺寸
External dimension

型號 type	規格 Specifications	參考外徑 Reference diameter
AKFFPXR200 ANFFPXR200 AEFFPXR200 AJFFPXR200 ATFFPXR200	1*2*0.2	3.5
	1*2*0.3	3.9
	1*2*0.5	4.5
	1*3*0.2	3.8
	1*3*0.3	4.1
	1*3*0.5	4.7
AKFFPXR200 ANFFPXR200 AEFFPXR200 AJFFPXR200 ATFFPXR200	2*2*0.2	5.6
	2*2*0.3	5.9
	2*2*0.5	7.0
	2*3*0.2	6.0
	2*3*0.3	6.5
	2*3*0.5	7.7
AKFFPXR200 ANFFPXR200 AEFFPXR200 AJFFPXR200 ATFFPXR200	3*2*0.2	6.0
	3*2*0.3	6.4
	3*2*0.5	7.6
	3*3*0.2	6.4
	3*3*0.3	7.1
	3*3*0.5	8.3

六、電纜示意圖
The figure of cable structure

七、注意事項
    Notes
使用時嚴格防止電纜損傷，降低產品性能。
Cable damage and performance reduction are strictly prevented during installation.
八、交貨要求
    Delivery requirements
允許根據雙方協議長度交貨；長度誤差不超過±5%。
Delivery length of cable depends on both agreements with length error allowance of ±5%.
