氟塑料高溫線
Fluoroplastics High Temperature Cable
本品具有優良的耐腐蝕性能,幾乎不溶于任何有機溶劑, 可抗油, 抗強酸, 抗強堿, 強氧化劑等;具有優良的電絕緣性能, 耐高電壓, 高頻損耗小, 不吸潮,絕緣電阻大;具有優良的不燃、不老化性能, 氧指數≥60, 使用壽命長。廣泛應用于航空、冶金、石油、家用電器、照明燈具、電子電器、儀器儀表、電機、工業器械等高溫環境。
Fluoroplastics high temperature cable has many excellent performances including corrosion resistance, almost insoluble in any organic solvents, oil-resistant, anti-acid, anti-alkali, anti strong oxidizer, etc.; Besides, it also has many other excellent properties including good electrical insulation, high voltage resistance, low high-frequency loss, moisture resistance, big insulated resistance; what’s more, it also has an excellent non-flammable, non-aging properties, long service life and its oxygen index is no less than 60. It is widely used in environment with high temperature such as aviation, metallurgy, petroleum, household appliances, lighting fixtures, electrical and electronics, instrumentation, electrical, industrial equipment and so no.

一、產品執行標準  GJB773A-2000

    Executive standard: GJB773A-2000

二、型號

    Type

   ZHTAF200,ZHTAF250—氟塑料高溫線

ZHTAF200,ZHTAF250— Fluoroplastics High Temperature Cable

三、使用特性

Characteristics

1、   額定電壓：300V；

Rated voltage: 300V；

2、   額定溫度：-55/60℃～+200/250℃；

Rated temperature range: -55/60℃～+200/250℃；

3、 導體：鍍銀銅絲；

Conductor: silver-plated copper wire;
4、 顏色：紅、黃、藍、白、黑、綠、棕、橙、灰、透明等；

Color: red, yellow, blue, white, black, green, palm, orange, grey, transparent etc.
5、 絕緣體：聚全氟乙丙烯（FEP）；可熔性四氟乙烯（PFA）。

Insulator:  FEP; PFA.

四、性能參數表

    Performance parameter

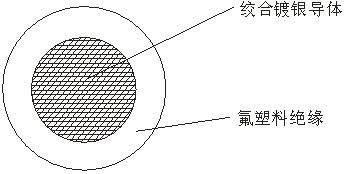

五、電纜示意圖

    The figure of cable structure






六、注意事項

    Notes

施工時嚴格防止電纜損傷，降低產品性能。

Cable damage and performance reduction are strictly prevented during installation.

七、交貨要求

    Delivery requirement

允許根據雙方協議長度交貨；長度誤差不超過±5%。

Delivery length of cable depends on both agreements with length error allowance of ±5%
