型號

產品名稱

YVFB

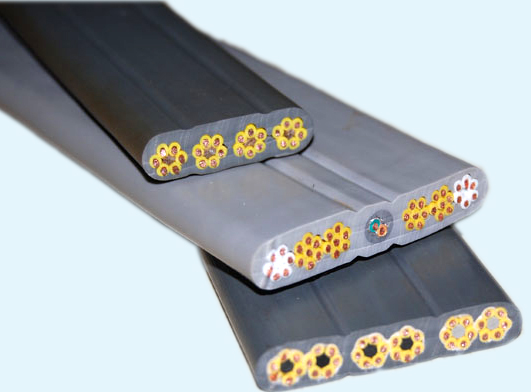

丁腈絕緣和護套移動用扁平軟電纜

YVFBP

丁腈絕緣和護套銅編織屏蔽移動用扁平軟電纜

代號

代號含義

Y

移動用系列

VF

丁腈絕緣和護套

P

銅編織屏蔽

B

扁型

線芯*標稱截面(mm2)

導體結構

(根數*直徑)

mm

電纜最大外徑

YVFB

2*1.5

48*0.20

11.4*7.5

2*2.5

51*0.25

14.0×9.0

2*4

82*0.25

15.8×9.5

2*6

123*0.25

18.2×10.8

2*10

204*0.25

21.5×12.5

2*16

323*0.25

24.2×13.9

2*25

513*0.25

28.5×16.2

2*35

722*0.25

31.8×18.1

2*50

1026*0.25

36.6×20.5

2*70

1406*0.25

41.6×23.3

2*95

486*0.50

47.3×26.3

2*120

608*0.50

50.8×28.1

2*150

760*0.50

56.3×31.2

3*1.5

48*0.20

15.8*7.5

3*2.5

51*0.25

18.8×9.0

3*4

82*0.25

21.6×9.5

3*6

123*0.25

25.8×11.3

3*10

204*0.25

32.1×13.2

3*16

323*0.25

34.2×14.9

3*25

513*0.25

42.3×18.2

3*35

722*0.25

46.2×19.1

3*50

1026*0.25

55.8×22.0

3*70

1406*0.25

66.8×26.8

3*95

486*0.50

70.2×28.0

3*120

608*0.50

85.5×36.0

3*150

760*0.50

95.0×35.1

4*1.5

48*0.20

20.5*7.5

4*2.5

945*0.50

25.8×9.0

4*4

82*0.25

29.4×9.5

4*6

123*0.25

34.1×11.8

4*10

204*0.25

40.4×12.9

4*16

323*0.25

45.9×15.6

4*25

513*0.25

54.1×18.1

4*35

722*0.25

58.6×20.2

4*50

1026*0.25

83.0×26.5

3×4+2.5

82*0.25/51*0.25

30.6×10.7

3×6+4

123*0.25/82*0.25

31.0×12.8

3×10+6

204*0.25/123*0.25

35.0×12.9

3×16+6

323*0.25/123*0.25

41.3×15.6

3×25+10

513*0.25/204*0.25

49.1×18.1

3×35+10

722*0.25/204*0.25

64.2×20.2

3×50+16

1026*0.25/323*0.25

80.2×23.4

3×70+25

1406*0.25/513*0.25

85.3×27.2

3×95+35

486*0.50/722*0.25

97.6×29.7

3×120+35

608*0.50/722*0.25

107.1×31.9

5*1.5

48*0.20

25.5*7.5

5*2.5

51*0.25

32.0*9.0

5*4

82*0.5

37.5*10

6*1.5

48*0.20

31*7.5

6*2.5

51*0.25

40.9*9.0

6*4

82*0.5

42.0*10

7*1.5

48*0.20

32.0*7.0

7*2.5

51*0.25

41.0*9.0

7*4

82*0.25

44.0*10.0

8*1.5

48*0.20

38.5*7.8

8*2.5

51*0.25

48.0*8.0

8*4

82*0.25

51.0*10.6

10*1.5

48*0.20

44.5*7.8

10*2.5

51*0.25

59.0*9.0

10*4

82*0.25

65.2*11.0

12*1.5

48*0.20

59.5*8.5

12*2.5

51*0.25

70.0*8.5

12*4

82*0.25

80.2*11.0
