SIHF、SIHE 耐熱硅橡膠電纜
產品特性：
產品特性：
額定電壓：300/500V
額定溫度：-60℃~180℃

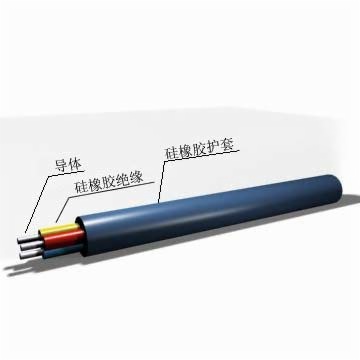

導體：SIHF：絞合裸銅或鍍錫銅絲
STHE：?jiǎn)喂苫蛏俟山g和裸銅或鍍錫銅絲
絕緣體：硅橡膠
護套： 硅橡膠
|
特性項目
|
特性規格
|
引用標準
|
||
|
外 觀
|
表面光潔、色澤均勻、無松散
|
DIN VDE 0250-502
DIN VDE 0282-1:1999.01
DIN VDE 0282-2:1999.01
|
||
|
火花試驗
|
AC6KV/ 0.15 S
|
|||
|
耐壓測試
|
2 KV/5 min
|
|||
|
絕緣
護套
機械
性能
|
老化前
|
抗張強度
|
≥5.0N/mm²
|
|
|
斷裂伸長率
|
≥150%
|
|||
|
老化后
|
抗張強度
|
≥4.0N/mm²
|
||
|
(200±3℃×240h)
|
斷裂伸長率
|
≥120%
|
||
|
有害物質控制
|
符合ROHS指令
|
歐盟—2002/95/EC
|
||
SIHF(1)結構尺寸附表
| 芯數×截面 | 線芯結構 | 電線外徑 | 20℃時導體電阻 Ω/KM不大于 | ||
| 標稱 | 公差 | ||||
| mm² | 根/直徑 mm | mm | mm | 銅芯 | 鍍錫銅絲 |
| 2×0.22 | 7/0.20 | 4.8 | ±0.20 | 93.0 | |
| 3×0.22 | 7/0.20 | 5.1 | ±0.20 | 93.0 | |
| 4×0.22 | 7/0.20 | 5.6 | ±0.20 | 93.0 | |
| 5×0.22 | 7/0.20 | 6.1 | ±0.20 | 93.0 | |
| 2×0.25 | 8/0.20 | 4.9 | ±0.20 | 80.9 | |
| 3×0.25 | 8/0.20 | 5.2 | ±0.20 | 80.9 | |
| 4×0.25 | 8/0.20 | 5.7 | ±0.20 | 80.9 | |
| 5×0.25 | 8/0.20 | 6.2 | ±0.20 | 80.9 | |
| 2×0.35 | 11/0.20 | 5.3 | ±0.20 | 55.0 | |
| 3×0.35 | 11/0.20 | 5.6 | ±0.20 | 55.0 | |
| 4×0.35 | 11/0.20 | 6.1 | ±0.20 | 55.0 | |
| 5×0.35 | 11/0.20 | 6.7 | ±0.20 | 55.0 | |
| 2×0.5 | 16/0.20 | 5.9 | ±0.20 | 39.0 | 40.1 |
| 3×0.5 | 16/0.20 | 6.2 | ±0.20 | 39.0 | 40.1 |
| 4×0.5 | 16/0.20 | 6.8 | ±0.25 | 39.0 | 40.1 |
| 5×0.5 | 16/0.20 | 7.4 | ±0.30 | 39.0 | 40.1 |
| 6×0.5 | 16/0.20 | 7.6 | ±0.30 | 39.0 | 40.1 |
| 7×0.5 | 16/0.20 | 8.1 | ±0.30 | 39.0 | 40.1 |
| 2×0.75 | 24/0.20 | 6.3 | ±0.20 | 26.0 | 26.7 |
| 3×0.75 | 24/0.20 | 7.1 | ±0.25 | 26.0 | 26.7 |
| 4×0.75 | 24/0.20 | 7.7 | ±0.30 | 26.0 | 26.7 |
| 5×0.75 | 24/0.20 | 8.4 | ±0.30 | 26.0 | 26.7 |
| 6×0.75 | 24/0.20 | 8.6 | ±0.30 | 26.0 | 26.7 |
| 7×0.75 | 24/0.20 | 9.1 | ±0.30 | 26.0 | 26.7 |
| 10×0.75 | 24/0.20 | 11.8 | ±0.30 | 26.0 | 26.7 |
| 12×0.75 | 24/0.20 | 12.5 | ±0.30 | 26.0 | 26.7 |
| 19×0.75 | 24/0.20 | 14.8 | ±0.40 | 26.0 | 26.7 |
| 2×1.0 | 32/0.20 | 7.1 | ±0.25 | 19.5 | 20.0 |
| 3×1.0 | 32/0.20 | 7.5 | ±0.30 | 19.5 | 20.0 |
| 4×1.0 | 32/0.20 | 8.2 | ±0.30 | 19.5 | 20.0 |
| 5×1.0 | 32/0.20 | 8.9 | ±0.30 | 19.5 | 20.0 |
| 6×1.0 | 32/0.20 | 9.2 | ±0.30 | 19.5 | 20.0 |
| 7×1.0 | 32/0.20 | 9.7 | ±0.30 | 19.5 | 20.0 |
| 10×1.0 | 32/0.20 | 12.6 | ±0.30 | 19.5 | 20.0 |
| 12×1.0 | 32/0.20 | 13.5 | ±0.30 | 19.5 | 20.0 |
| 19×1.0 | 32/0.20 | 15.8 | ±0.40 | 19.5 | 20.0 |
| 2×1.5 | 30/0.25 | 7.8 | ±0.30 | 13.3 | 13.7 |
| 3×1.5 | 30/0.25 | 8.3 | ±0.30 | 13.3 | 13.7 |
| 4×1.5 | 30/0.25 | 9.0 | ±0.30 | 13.3 | 13.7 |
| 5×1.5 | 30/0.25 | 10.0 | ±0.30 | 13.3 | 13.7 |
| 6×1.5 | 30/0.25 | 10.4 | ±0.30 | 13.3 | 13.7 |
| 7×1.5 | 30/0.25 | 10.9 | ±0.30 | 13.3 | 13.7 |
| 10×1.5 | 30/0.25 | 14.0 | ±0.30 | 13.3 | 13.7 |
| 12×1.5 | 30/0.25 | 14.9 | ±0.40 | 13.3 | 13.7 |
| 16×1.5 | 30/0.25 | 16.6 | ±0.40 | 13.3 | 13.7 |
| 18×1.5 | 30/0.25 | 17.2 | ±0.40 | 13.3 | 13.7 |
| 19×1.5 | 30/0.25 | 17.7 | ±0.40 | 13.3 | 13.7 |
| 20×1.5 | 30/0.25 | 18.4 | ±0.40 | 13.3 | 13.7 |
| 24×1.5 | 30/0.25 | 21.0 | ±0.40 | 13.3 | 13.7 |
SIHF(2)結構尺寸附表
| 芯數×截面 | 線芯結構 | 電線外徑 | 20℃時導體電阻 Ω/KM不大于 | ||
| 標稱 | 公差 | ||||
| mm² | 根/直徑 mm | mm | mm | 銅芯 | 鍍錫銅絲 |
| 2×2.5 | 50/0.25 | 9.2 | ±0.30 | 7.98 | 8.21 |
| 3×2.5 | 50/0.25 | 9.8 | ±0.30 | 7.98 | 8.21 |
| 4×2.5 | 50/0.25 | 10.6 | ±0.30 | 7.98 | 8.21 |
| 5×2.5 | 50/0.25 | 11.6 | ±0.30 | 7.98 | 8.21 |
| 6×2.5 | 50/0.25 | 12.0 | ±0.30 | 7.98 | 8.21 |
| 7×2.5 | 50/0.25 | 12.6 | ±0.30 | 7.98 | 8.21 |
| 10×2.5 | 50/0.25 | 16.4 | ±0.40 | 7.98 | 8.21 |
| 12×2.5 | 50/0.25 | 17.4 | ±0.40 | 7.98 | 8.21 |
| 19×2.5 | 50/0.25 | 20.6 | ±0.40 | 7.98 | 8.21 |
| 2×4 | 56/0.30 | 11.2 | ±0.30 | 4.95 | 5.09 |
| 3×4 | 56/0.30 | 12.0 | ±0.30 | 4.95 | 5.09 |
| 4×4 | 56/0.30 | 13.5 | ±0.30 | 4.95 | 5.09 |
| 5×4 | 56/0.30 | 14.8 | ±0.40 | 4.95 | 5.09 |
| 6×4 | 56/0.30 | 15.7 | ±0.40 | 4.95 | 5.09 |
| 7×4 | 56/0.30 | 16.6 | ±0.40 | 4.95 | 5.09 |
| 2×6 | 84/0.30 | 13.0 | ±0.30 | 3.30 | 3.39 |
| 3×6 | 84/0.30 | 13.7 | ±0.30 | 3.30 | 3.39 |
| 4×6 | 84/0.30 | 15.6 | ±0.40 | 3.30 | 3.39 |
| 5×6 | 84/0.30 | 17.0 | ±0.40 | 3.30 | 3.39 |
| 6×6 | 84/0.30 | 18.0 | ±0.40 | 3.30 | 3.39 |
| 7×6 | 84/0.30 | 18.8 | ±0.40 | 3.30 | 3.39 |
| 2×10 | 84/0.40 | 17.0 | ±0.40 | 1.91 | 1.95 |
| 3×10 | 84/0.40 | 18.4 | ±0.50 | 1.91 | 1.95 |
| 4×10 | 84/0.40 | 20.6 | ±0.50 | 1.91 | 1.95 |
| 5×10 | 84/0.40 | 22.8 | ±0.50 | 1.91 | 1.95 |
| 2×16 | 126/0.40 | 22.6 | ±0.50 | 1.21 | 1.24 |
| 3×16 | 126/0.40 | 22.4 | ±0.50 | 1.21 | 1.24 |
| 4×16 | 126/0.40 | 25.0 | ±0.50 | 1.21 | 1.24 |
| 5×16 | 126/0.40 | 27.6 | ±0.50 | 1.21 | 1.24 |
| 2×25 | 196/0.40 | 25.0 | ±0.50 | 0.78 | 0.795 |
| 3×25 | 196/0.40 | 27.0 | ±0.50 | 0.78 | 0.795 |
| 4×25 | 196/0.40 | 29.5 | ±0.50 | 0.78 | 0.795 |
| 5×25 | 196/0.40 | 32.8 | ±0.60 | 0.78 | 0.795 |
| 2×35 | 276/0.40 | 28.0 | ±0.50 | 0.554 | 0.565 |
| 3×35 | 276/0.40 | 30.0 | ±0.50 | 0.554 | 0.565 |
| 4×35 | 276/0.40 | 33.0 | ±0.60 | 0.554 | 0.565 |
| 3×50 | 396/0.40 | 36.0 | ±0.60 | 0.386 | 0.393 |
| 4×50 | 396/0.40 | 39.6 | ±0.60 | 0.386 | 0.393 |
| 3×70 | 360/0.50 | 40.0 | ±0.60 | 0.272 | 0.277 |
| 3×95 | 475/0.50 | 45.8 | ±0.80 | 0.206 | 0.210 |
SIHF(3)結構尺寸附表
| 芯數×線規 | 線芯結構 | 電線外徑 | 20℃時導體電阻 Ω/KM不大于 | |
| 標稱 | 公差 | |||
| AWG | 根/直徑 mm | mm | mm | 鍍錫銅絲 |
| 2×18 | 26/0.20 | 6.4 | ±0.20 | 21.8 |
| 3×18 | 26/0.20 | 6.9 | ±0.25 | 21.8 |
| 4×18 | 26/0.20 | 7.9 | ±0.30 | 21.8 |
| 5×18 | 26/0.20 | 8.6 | ±0.30 | 21.8 |
| 6×18 | 26/0.20 | 8.8 | ±0.30 | 21.8 |
| 7×18 | 26/0.20 | 9.3 | ±0.30 | 21.8 |
| 2×16 | 28/0.25 | 7.6 | ±0.30 | 13.7 |
| 3×16 | 28/0.25 | 8.1 | ±0.30 | 13.7 |
| 4×16 | 28/0.25 | 8.8 | ±0.30 | 13.7 |
| 5×16 | 28/0.25 | 9.8 | ±0.30 | 13.7 |
| 6×16 | 28/0.25 | 10.1 | ±0.30 | 13.7 |
| 7×16 | 28/0.25 | 10.7 | ±0.30 | 13.7 |
| 2×14 | 41/0.25 | 8.8 | ±0.30 | 8.62 |
| 3×14 | 41/0.25 | 9.4 | ±0.30 | 8.62 |
| 4×14 | 41/0.25 | 10.4 | ±0.30 | 8.62 |
| 5×14 | 41/0.25 | 11.4 | ±0.30 | 8.62 |
| 6×14 | 41/0.25 | 11.7 | ±0.30 | 8.62 |
| 7×14 | 41/0.25 | 12.4 | ±0.30 | 8.62 |
| 2×12 | 43/0.32 | 10.6 | ±0.30 | 5.43 |
| 3×12 | 43/0.32 | 11.5 | ±0.30 | 5.43 |
| 4×12 | 43/0.32 | 13.0 | ±0.30 | 5.43 |
| 5×12 | 43/0.32 | 14.4 | ±0.40 | 5.43 |
| 6×12 | 43/0.32 | 14.8 | ±0.40 | 5.43 |
| 7×12 | 43/0.32 | 16.0 | ±0.40 | 5.43 |
| 2×10 | 35/0.45 | 12.6 | ±0.30 | 3.41 |
| 3×10 | 35/0.45 | 13.4 | ±0.30 | 3.41 |
| 4×10 | 35/0.45 | 15.1 | ±0.40 | 3.41 |
| 5×10 | 35/0.45 | 16.7 | ±0.40 | 3.41 |
| 6×10 | 35/0.45 | 17.6 | ±0.40 | 3.41 |
| 7×10 | 35/0.45 | 18.5 | ±0.40 | 3.41 |
| 2×8 | 70/0.40 | 16.0 | ±0.40 | 2.30 |
| 3×8 | 70/0.40 | 17.5 | ±0.40 | 2.30 |
| 4×8 | 70/0.40 | 19.6 | ±0.40 | 2.30 |
| 5×8 | 70/0.40 | 21.8 | ±0.50 | 2.30 |
| 6×8 | 70/0.40 | 22.4 | ±0.50 | 2.30 |
| 7×8 | 70/0.40 | 24.0 | ±0.50 | 2.30 |
SIHE(1)結構尺寸附表
| 芯數×截面 | 線芯結構 | 電線外徑 | 20℃時導體電阻 Ω/KM不大于 | ||
| 標稱 | 公差 | ||||
| mm² | 根/直徑 mm | mm | mm | 銅芯 | 鍍錫銅絲 |
| 2×0.22 | 1/0.52 | 4.7 | ±0.20 | 90 | |
| 3×0.22 | 1/0.52 | 5.0 | ±0.20 | 90 | |
| 4×0.22 | 1/0.52 | 5.5 | ±0.20 | 90 | |
| 5×0.22 | 1/0.52 | 6.0 | ±0.20 | 90 | |
| 2×0.25 | 1/0.56 | 4.8 | ±0.20 | 76 | |
| 3×0.25 | 1/0.56 | 5.1 | ±0.20 | 76 | |
| 4×0.25 | 1/0.56 | 5.6 | ±0.20 | 76 | |
| 5×0.25 | 1/0.56 | 6.1 | ±0.20 | 76 | |
| 2×0.35 | 1/0.67 | 5.2 | ±0.20 | 55 | |
| 3×0.35 | 1/0.67 | 5.5 | ±0.20 | 55 | |
| 4×0.35 | 1/0.67 | 6.0 | ±0.20 | 55 | |
| 5×0.35 | 1/0.67 | 6.6 | ±0.25 | 55 | |
| 2×0.5 | 1/0.80 | 5.7 | ±0.20 | 36.0 | 36.7 |
| 3×0.5 | 1/0.80 | 6.0 | ±0.20 | 36.0 | 36.7 |
| 4×0.5 | 1/0.80 | 6.5 | ±0.25 | 36.0 | 36.7 |
| 5×0.5 | 1/0.80 | 7.1 | ±0.30 | 36.0 | 36.7 |
| 6×0.5 | 1/0.80 | 7.3 | ±0.30 | 36.0 | 36.7 |
| 7×0.5 | 1/0.80 | 7.7 | ±0.30 | 36.0 | 36.7 |
| 2×0.75 | 1/0.98 | 6.1 | ±0.20 | 24.5 | 24.8 |
| 3×0.75 | 1/0.98 | 6.4 | ±0.20 | 24.5 | 24.8 |
| 4×0.75 | 1/0.98 | 7.5 | ±0.30 | 24.5 | 24.8 |
| 5×0.75 | 1/0.98 | 8.1 | ±0.30 | 24.5 | 24.8 |
| 6×0.75 | 1/0.98 | 8.3 | ±0.30 | 24.5 | 24.8 |
| 7×0.75 | 1/0.98 | 8.8 | ±0.30 | 24.5 | 24.8 |
| 10×0.75 | 1/0.98 | 11.5 | ±0.30 | 24.5 | 24.8 |
| 12×0.75 | 1/0.98 | 12.0 | ±0.30 | 24.5 | 24.8 |
| 19×0.75 | 1/0.98 | 14.4 | ±0.40 | 24.5 | 24.8 |
SIHE(2)結構尺寸附表
| 芯數×截面 | 線芯結構 | 電線外徑 | 20℃時導體電阻 Ω/KM不大于 | ||
| 標稱 | 公差 | ||||
| mm² | 根/直徑 mm | mm | mm | 銅芯 | 鍍錫銅絲 |
| 2×1.0 | 1/1.13 | 6.3 | ±0.20 | 18.1 | 18.2 |
| 3×1.0 | 1/1.13 | 6.8 | ±0.25 | 18.1 | 18.2 |
| 4×1.0 | 1/1.13 | 7.8 | ±0.30 | 18.1 | 18.2 |
| 5×1.0 | 1/1.13 | 8.5 | ±0.30 | 18.1 | 18.2 |
| 6×1.0 | 1/1.13 | 8.7 | ±0.30 | 18.1 | 18.2 |
| 7×1.0 | 1/1.13 | 9.2 | ±0.30 | 18.1 | 18.2 |
| 10×1.0 | 1/1.13 | 12.0 | ±0.30 | 18.1 | 18.2 |
| 12×1.0 | 1/1.13 | 12.8 | ±0.30 | 18.1 | 18.2 |
| 19×1.0 | 1/1.13 | 15.0 | ±0.40 | 18.1 | 18.2 |
| 2×1.5 | 1/1.38 | 7.3 | ±0.30 | 12.1 | 12.2 |
| 3×1.5 | 1/1.38 | 7.7 | ±0.30 | 12.1 | 12.2 |
| 4×1.5 | 1/1.38 | 8.5 | ±0.30 | 12.1 | 12.2 |
| 5×1.5 | 1/1.38 | 9.5 | ±0.30 | 12.1 | 12.2 |
| 6×1.5 | 1/1.38 | 9.7 | ±0.30 | 12.1 | 12.2 |
| 7×1.5 | 1/1.38 | 10.3 | ±0.30 | 12.1 | 12.2 |
| 10×1.5 | 1/1.38 | 13.1 | ±0.30 | 12.1 | 12.2 |
| 12×1.5 | 1/1.38 | 13.9 | ±0.30 | 12.1 | 12.2 |
| 16×1.5 | 1/1.38 | 15.3 | ±0.40 | 12.1 | 12.2 |
| 18×1.5 | 1/1.38 | 15.9 | ±0.40 | 12.1 | 12.2 |
| 19×1.5 | 1/1.38 | 16.4 | ±0.40 | 12.1 | 12.2 |
| 20×1.5 | 1/1.38 | 16.8 | ±0.40 | 12.1 | 12.2 |
| 24×1.5 | 1/1.38 | 19.5 | ±0.40 | 12.1 | 12.2 |
| 2×2.5 | 1/1.78 | 8.9 | ±0.30 | 7.41 | 7.56 |
| 3×2.5 | 1/1.78 | 9.4 | ±0.30 | 7.41 | 7.56 |
| 4×2.5 | 1/1.78 | 10.4 | ±0.30 | 7.41 | 7.56 |
| 5×2.5 | 1/1.78 | 11.3 | ±0.30 | 7.41 | 7.56 |
| 6×2.5 | 1/1.78 | 11.6 | ±0.30 | 7.41 | 7.56 |
| 7×2.5 | 1/1.78 | 12.3 | ±0.30 | 7.41 | 7.56 |
| 10×2.5 | 1/1.78 | 15.9 | ±0.40 | 7.41 | 7.56 |
| 12×2.5 | 1/1.78 | 16.7 | ±0.40 | 7.41 | 7.56 |
| 19×2.5 | 1/1.78 | 19.9 | ±0.40 | 7.41 | 7.56 |
